Tech specs

Brand ASUS

Product Line ASUS

Model TUF Gaming B650-Plus WiFi

Manufacturer Asus Components

Compatible Processors Ryzen

Processor Socket Socket AM5

Processors Installed 0

Total Processor Supported 1

Features AMD EXPO technology, Dual channel memory architecture

Max Memory Supported 128 GB

Memory Slots 4 DIMM slots

Mainboard Supported RAM DDR5 SDRAM

Supported Memory Speed 4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)

Storage Interfaces PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10

Data Link Protocols 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Network 2.5 Gigabit Ethernet, Bluetooth 5.2

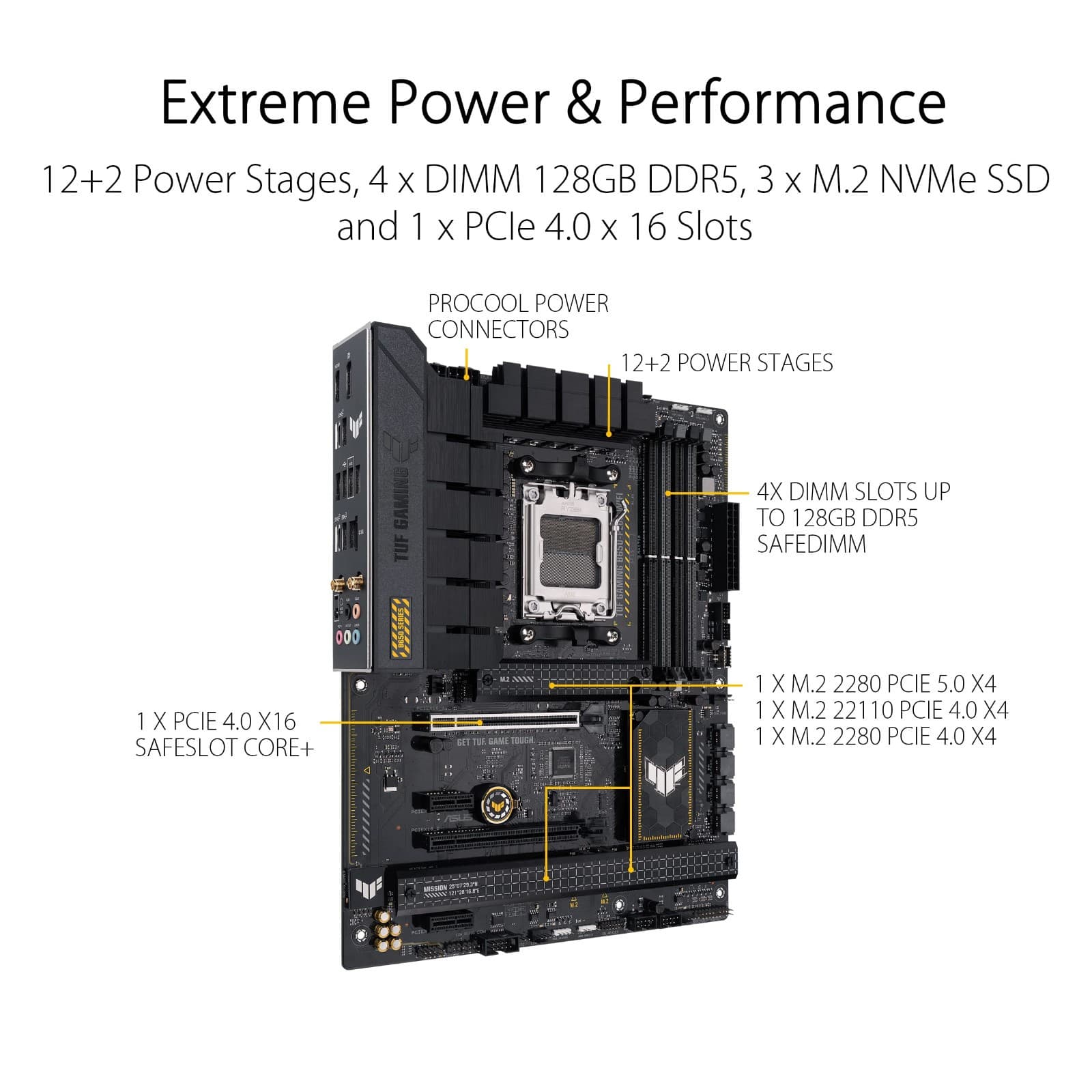

Expansion Slots 1 x CPU, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode (auto turn-off if 3rd M.2 is occupied)), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x PCIe 4.0 x1, 4 x DIMM 288-pin

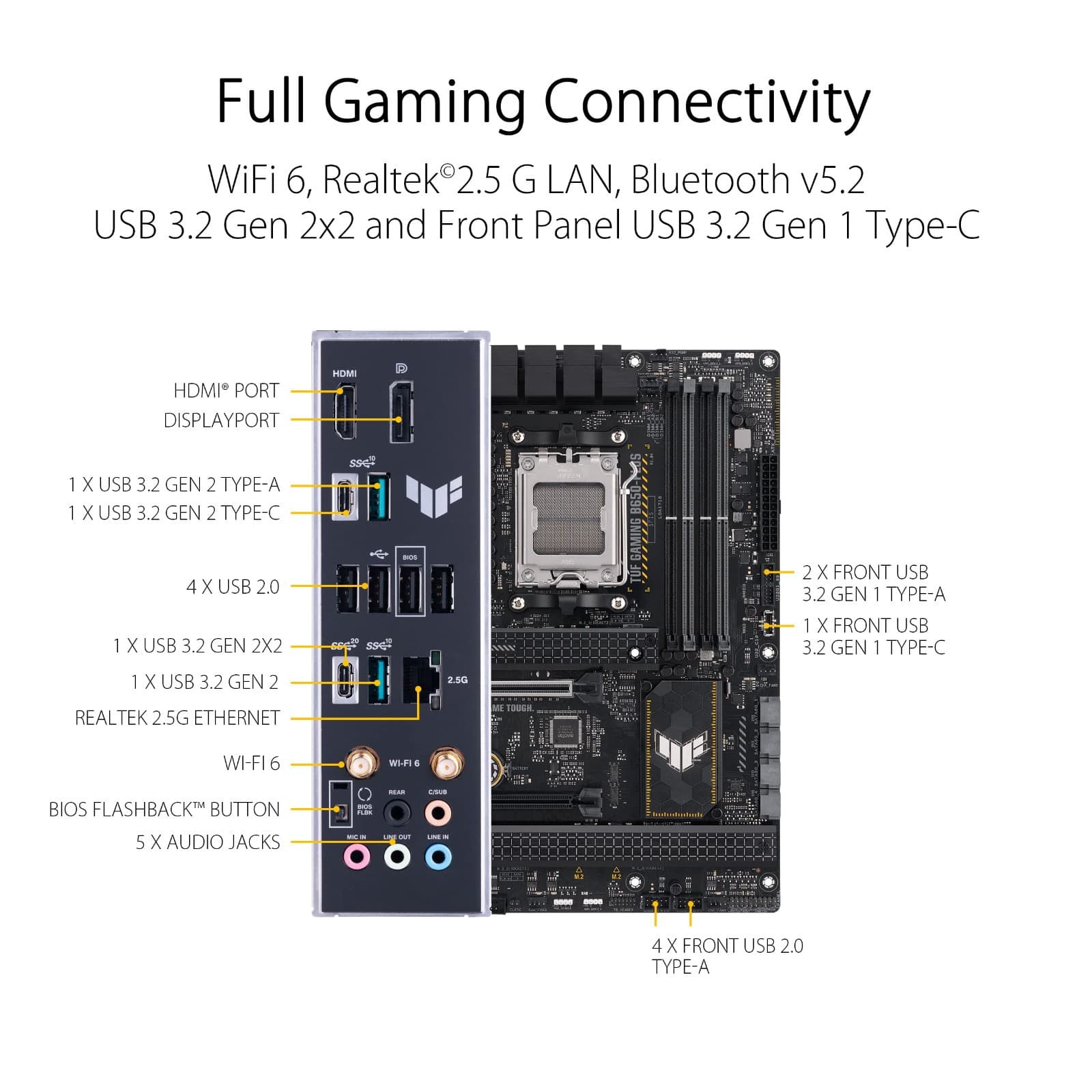

Interface Provided 1 x audio line-in - mini-jack, 1 x audio line-out - mini-jack, 1 x audio line-out (center/subwoofer) - mini-jack, 1 x audio line-out (rear) - mini-jack, 1 x DisplayPort, 1 x HDMI, 1 x microphone - mini-jack, 1 x USB-C 3.2 Gen 2, 1 x USB-C 3.2 Gen-2 x 2, 2 x antenna, 2 x USB 3.2 Gen 2, 4 x USB 2.0

Internal Interfaces 1 x audio - header, 1 x Thunderbolt - header, 1 x USB-C 3.2 Gen 1 - header, 2 x USB 3.2 Gen 1 - header, 4 x USB 2.0 - header

Storage M.2 socket, Serial ATA-600 (RAID)

Storage Ports 4 x SATA-600 (RAID), 3 x M.2

USB & FireWire USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2

USB & FireWire Ports Configuration (Active) 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 2.0

USB & FireWire Ports Configuration (Headers) 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Type Graphics adapter (CPU required)

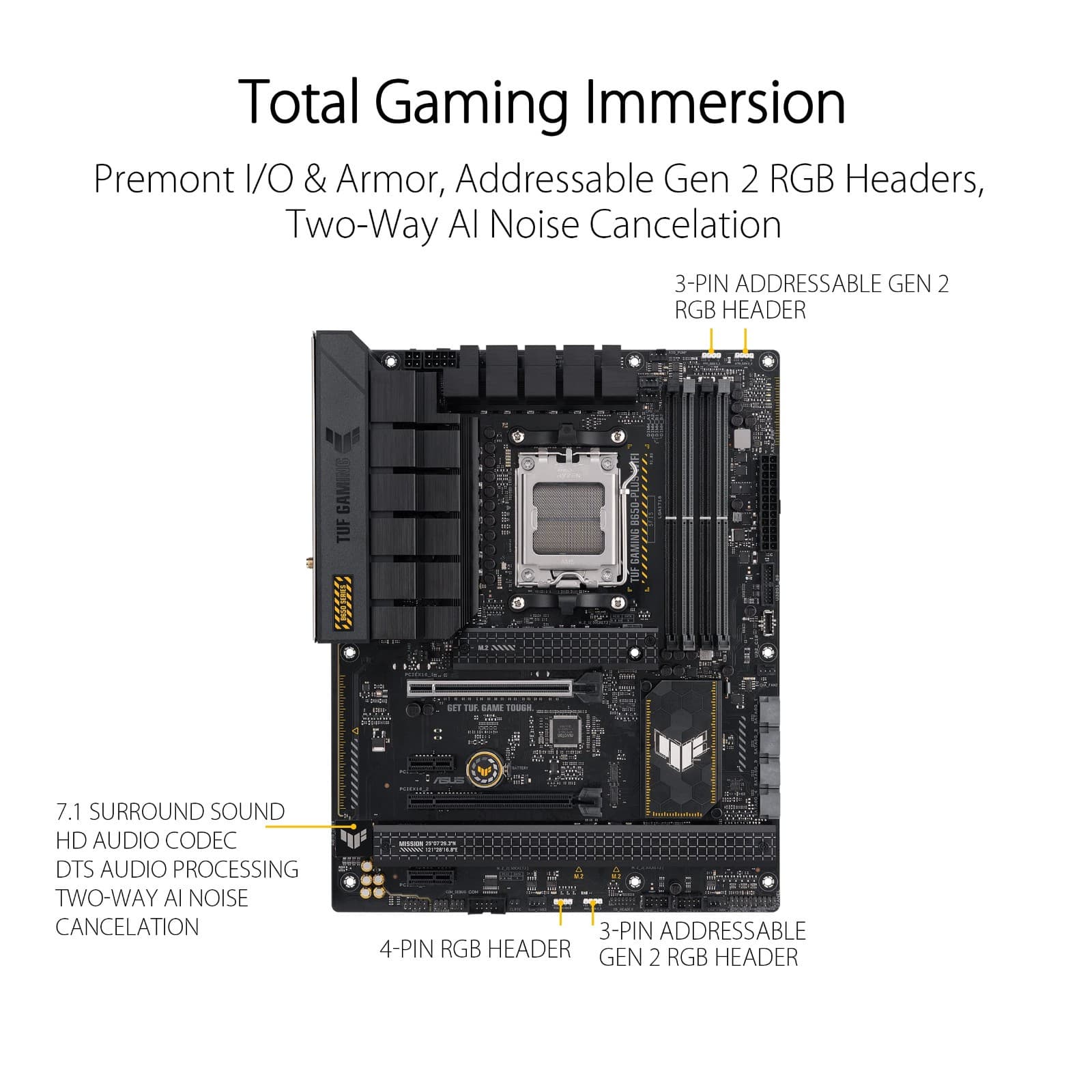

Audio Output High Definition Audio (7.1-channel)

Compliant Standards High Definition Audio

Output Type Sound card

Included Software Armoury Crate, ASUS AI Suite III, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS TUF GAMING CPU-Z, ASUS TurboV EVO Utility, MyAsus, Norton AntiVirus (Trial), PC Cleaner, WinRAR

Chipset Type AMD B650

Compatible Processors Comments Supports Ryzen 7000 Series

Form Factor (Motherboard) ATX

Power Connectors 24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector

Supported RAM (Registered or Buffered) Unbuffered

Supported RAM Integrity Check ECC, Non-ECC, On-die ECC

BIOS Features ASUS EZ Flash 3, UEFI BIOS

BIOS Type AMI

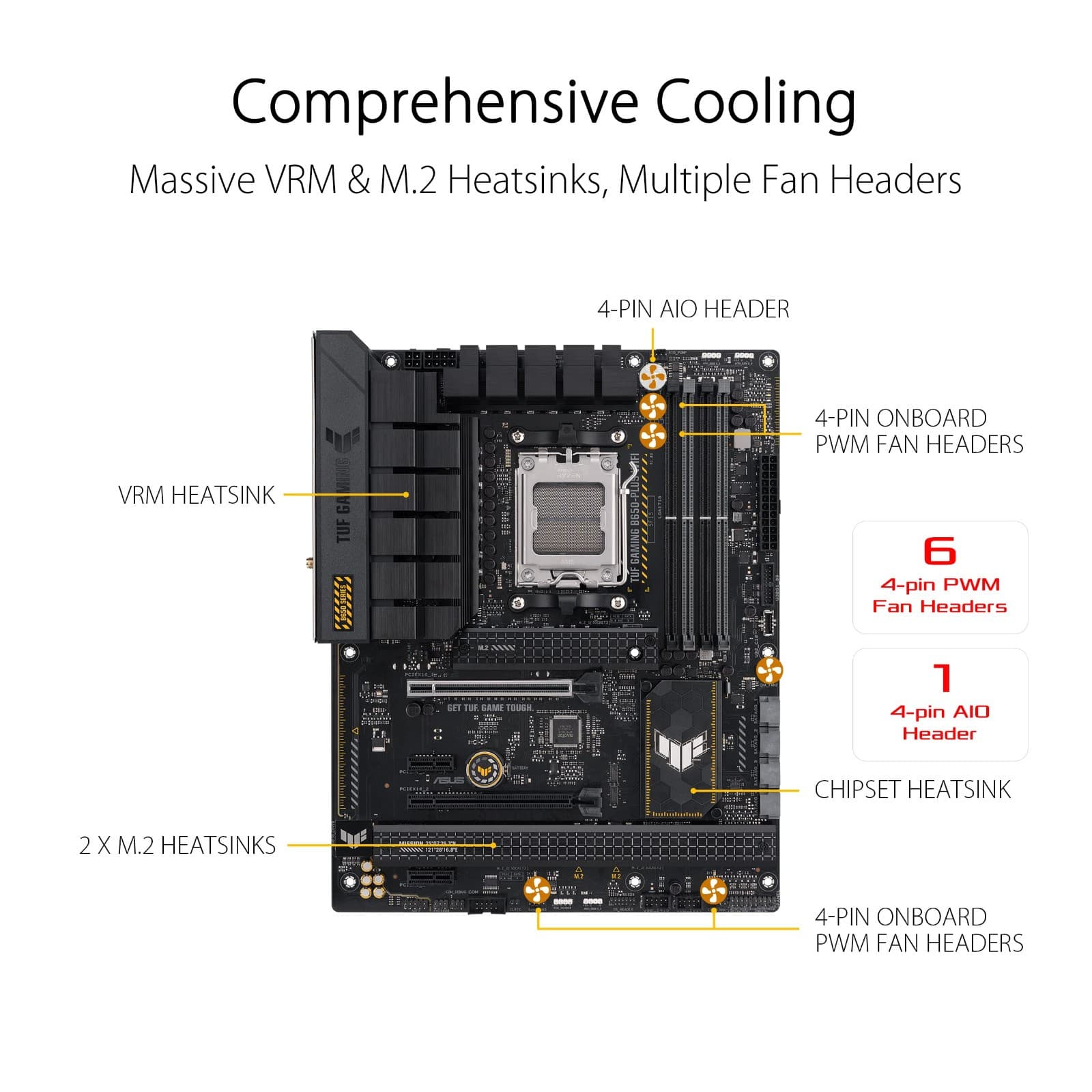

Hardware Features 12+2 DrMOS power stages, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS EZ DIY, ASUS OptiMem II, ASUS ProCool, ASUS Q-Design, ASUS Stainless Steel Back I/O, Audio jack detect technology, BIOS FlashBack button, BIOS FlashBack LED, CrashFree BIOS 3, Enlarged Heatsink Armor, ESD Guards, Jack retasking, M.2 heatsink, M.2 Q-Latch, Overvoltage protection, Pre-mounted I/O shield, Q-DIMM, Q-LED, Q-Slot, SafeDIMM, TUF Components, TUF LANGuard, VRM heatsink design, Water Pump Header

Packaged Quantity 1

Product Type Motherboard

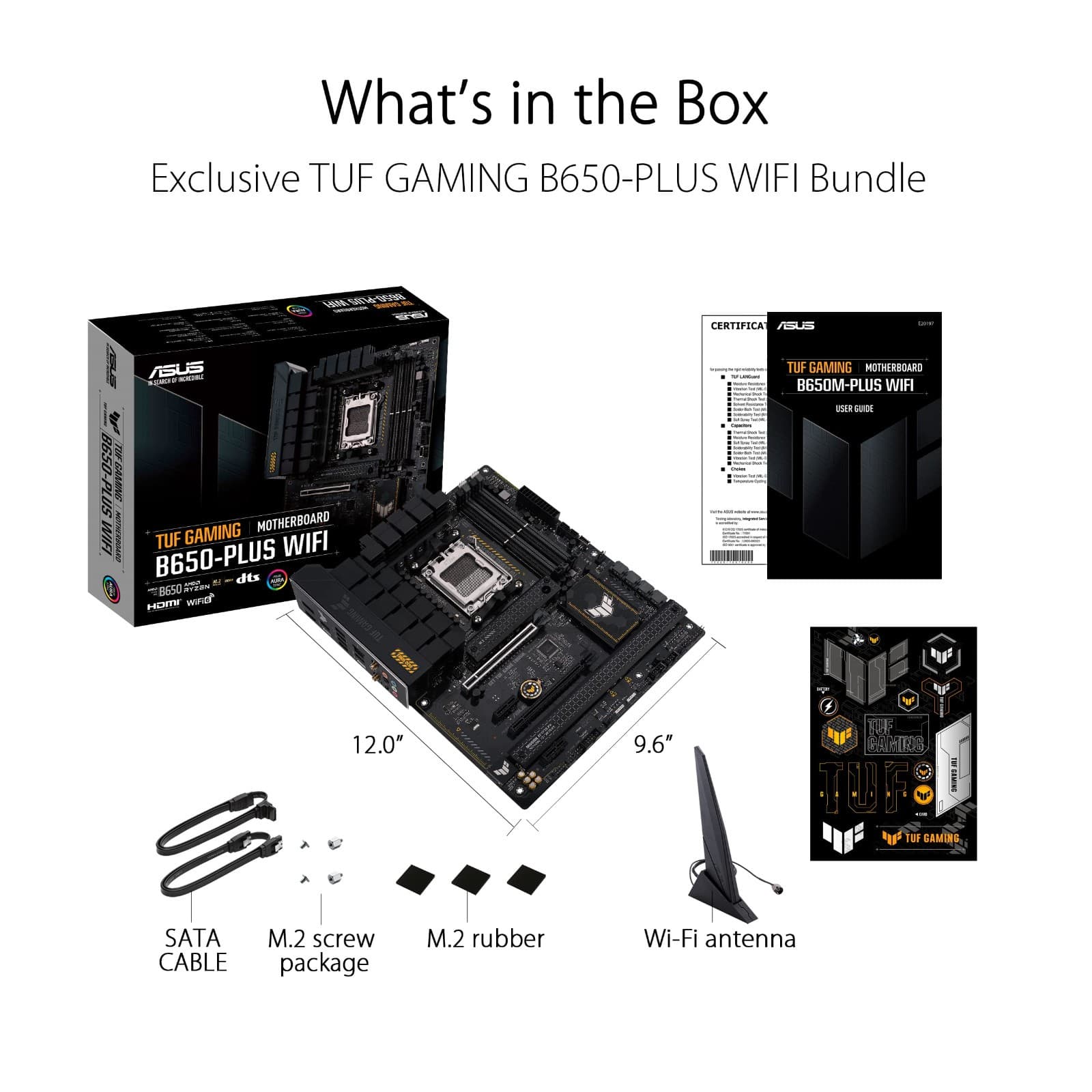

Cables 2 x Serial ATA cable

Included Accessories 1 x M.2 screw, 2 x M.2 rubber package, ASUS Wi-Fi moving antenna

Width 12 inch

Depth 9.6 inch

Compliant Standards DisplayPort 1.4, EU REACH, EU RoHS, FCC Part 15 Class B, HDCP 2.3, JATE, VCCI Class B ITE
