Pro Chaser DC-DC Golf Carts RVs 48V 36V

Volt Voltage To 12V Step Down Voltage Reducer Regulator For Headlights

Taillights Solar Panels Radios (30A 360W)

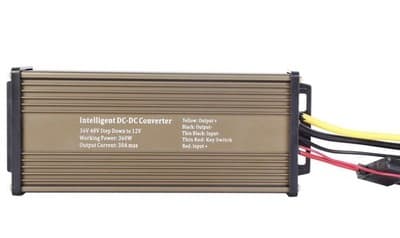

360 W DC–DC Voltage Regulator – Steps 36 V (six 6 V batteries) or 48 V (six 8 V batteries) golf-cart/RV battery packs down to a stable 12 V/30 A output for headlights, taillights, radios, solar panels, and more.

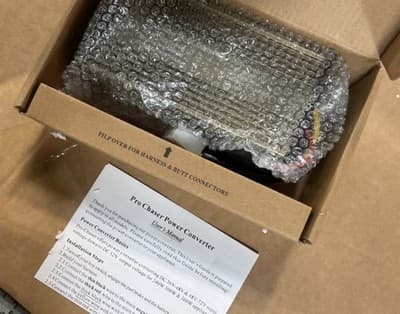

Color-Coded Harness & Manual – Includes matched connectors and butt-connectors plus a full-color manual with single-line wiring: thin black → battery (–), thick red → battery (+), thick black → accessory (–), yellow → accessory (+), thin red → key-switch “switched” terminal (probe with multimeter).

Safety & Installation Tips – Torque all terminals to 4–6 N·m to prevent arcing; secure converter, harness, and wires under vehicle to avoid chafing; install in 0 °C–50 °C, ≤ 85 % RH, with free airflow around the aluminum-cast shell’s vents.

Built-In Protection & Reliability Testing – Never exceed 360 W continuous load (peak surges ≤ 400 W); overload protector trips on over-current (remove load and wait 60 s before retry); each unit passes automated optical inspection, 1 h full-load burn-in, and surge/overload simulation.

Refer to the final image in the photo gallery for detailed, step-by-step wiring instructions.
