Genuine Square D HOM2100 Circuit Breaker Kit Bundle (1 Pack), 100 Amp (100A) Do

GENUINE OEM BREAKER — This offer includes one (1) authentic HOM2100 100-Amp double-pole circuit breaker from Square D's trusted Homeline series. The robust thermal-magnetic mechanism is engineered for reliable overcurrent protection for an entire load center or a high-amperage feeder circuit. This component is a factory-new, unused Original Equipment Manufacturer (OEM) part, sourced for its quality and performance, ensuring full compatibility with your specific Square D electrical service equipment.

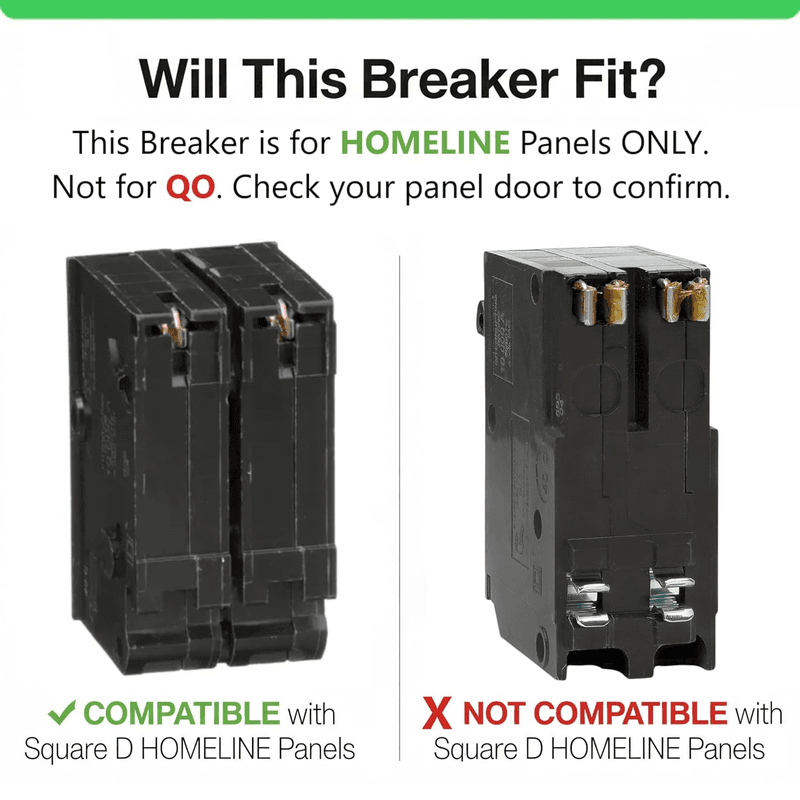

HOMELINE PANEL COMPATIBILITY — Designed with a specific plug-on mounting system for exclusive use as a main breaker in Square D Homeline residential load centers and CSEDs (Combined Service Entrance Devices). This standard 2-inch format, two-pole breaker makes a secure and reliable connection to the panel's aluminum bus bars. It is not compatible with the different bus bar design of Square D QO-series panels, ensuring you source the correct component for your Homeline electrical system.
MAIN & FEEDER APPLICATION — The 100-Amp, 120/240V capacity is designed for use as a main service disconnect for a 100A residential load center or for supplying power to a high-demand sub-panel in a workshop, detached garage, or new addition. This breaker serves as the primary overcurrent protection for all downstream branch circuits, providing a single point of disconnect for the entire sub-fed area. It is the cornerstone of a safe and compliant expansion of your home's electrical system.
TECHNICAL SPECIFICATIONS — This circuit breaker is Underwriters Laboratories (UL) Listed and American National Standards Institute (ANSI) Certified. It features a standard 10,000 Ampere Interrupting Capacity (10kAIC), meaning it can safely interrupt a fault current of up to 10,000 amps. The heavy-gauge box lug terminals accept a wire size range of #4 AWG to #1/0 AWG for both copper (Cu) and aluminum (Al) conductors and have a recommended tightening torque of 50 lb-in.
INSTALLATION BUNDLE — This is a value-added kit from FalconSupply. The box includes one (1) HOM2100 breaker, one (1) individually sealed professional electronics cleaning wipe for bus bar preparation, and one (1) Pro-Finishing Hardware Pack providing two zinc-plated steel combination-drive panel cover machine screws and one green hex-head grounding machine screw to assist with a clean and professional final installation.

Product Overview and Technical Function:

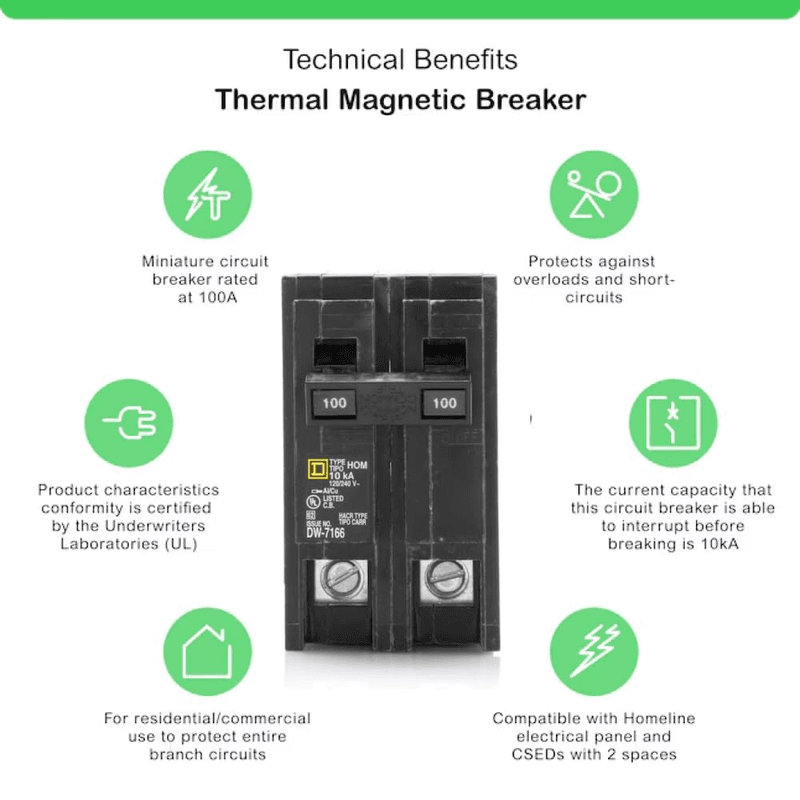

The HOM2100 is a 2-pole circuit breaker for primary overcurrent protection and service disconnect in Square D Homeline load centers. This 100 Amp (100A) main breaker operates on 120/240V AC systems and uses a thermal-magnetic trip mechanism for dual-action protection against overloads and short circuits. Rated for 10,000 AIR (10kAIC) interrupting capacity, it is engineered for significant fault current in residential and light commercial environments.

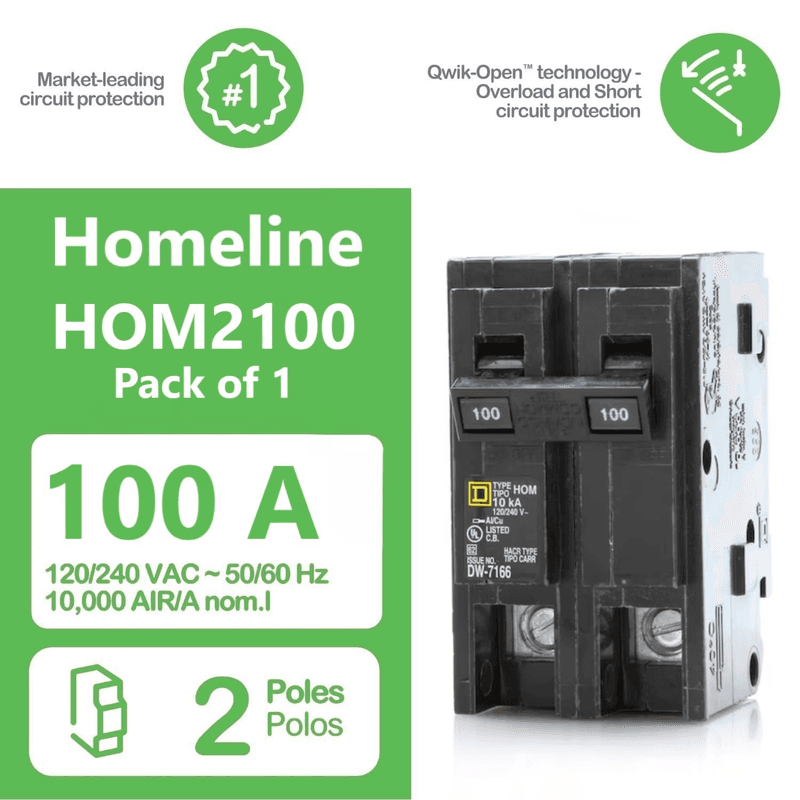

Technical Specifications:

Model: HOM2100 Standard Trip
Amperage: 100 Amps at 40°C
Voltage: 120/240 VAC (50/60 Hz)
Pole: 2-Pole (Double Pole) 2-inch width
Interrupting Rating: 10kAIC (10,000 AIR)
Trip Type: Thermal-Magnetic Common Trip

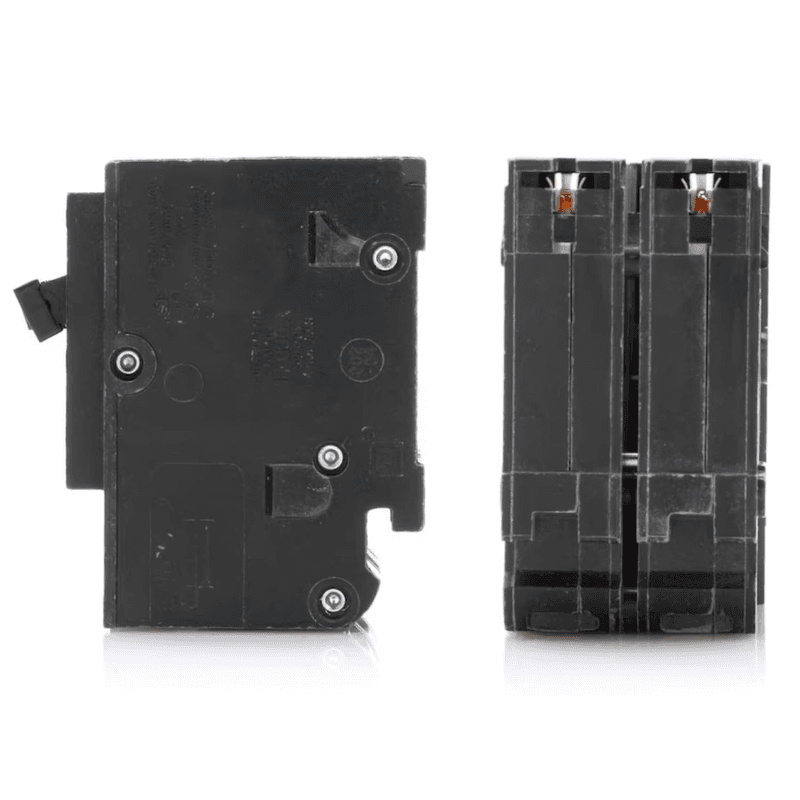

Mounting: Plug-On for Homeline Bus Bars
Terminal: Box Lug (Silver-Plated Copper)
Wire Size: #4 AWG to 2/0 AWG Cu/Al
Application: HACR Rated (HVAC/Refrigeration)
Certifications: UL Listed, CSA Certified, RoHS

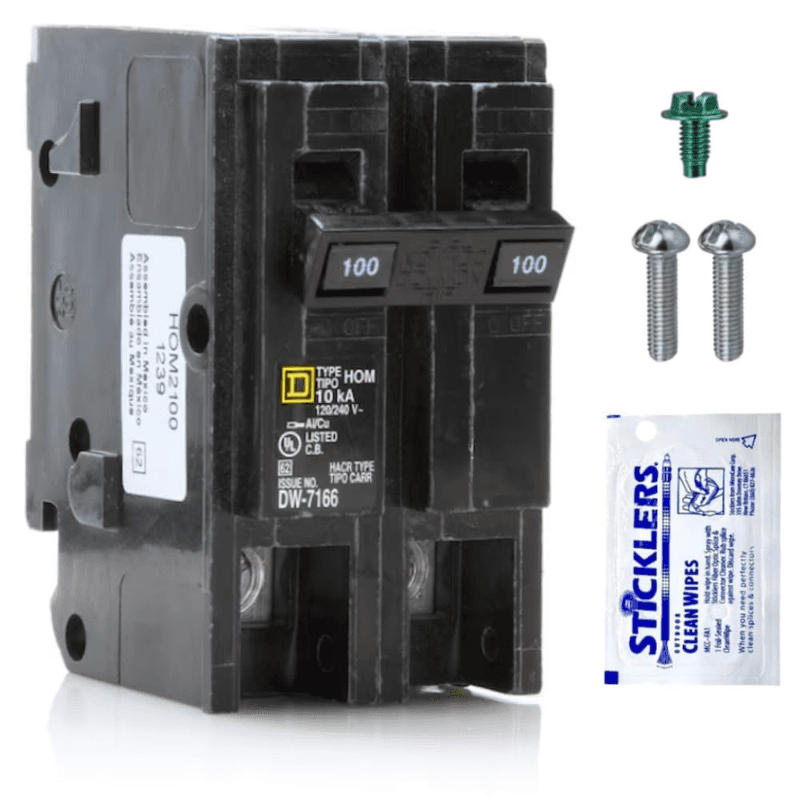

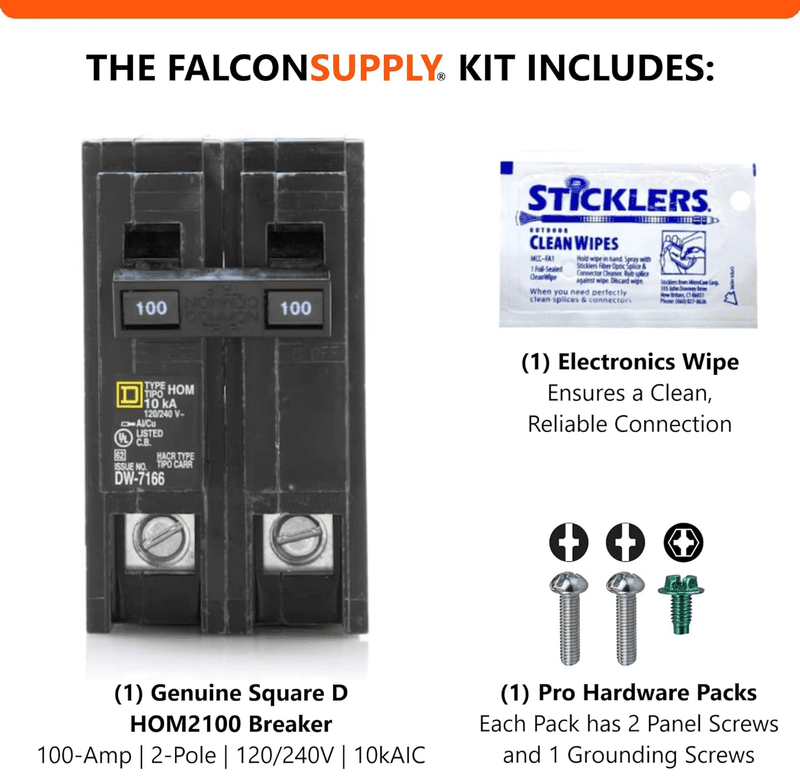

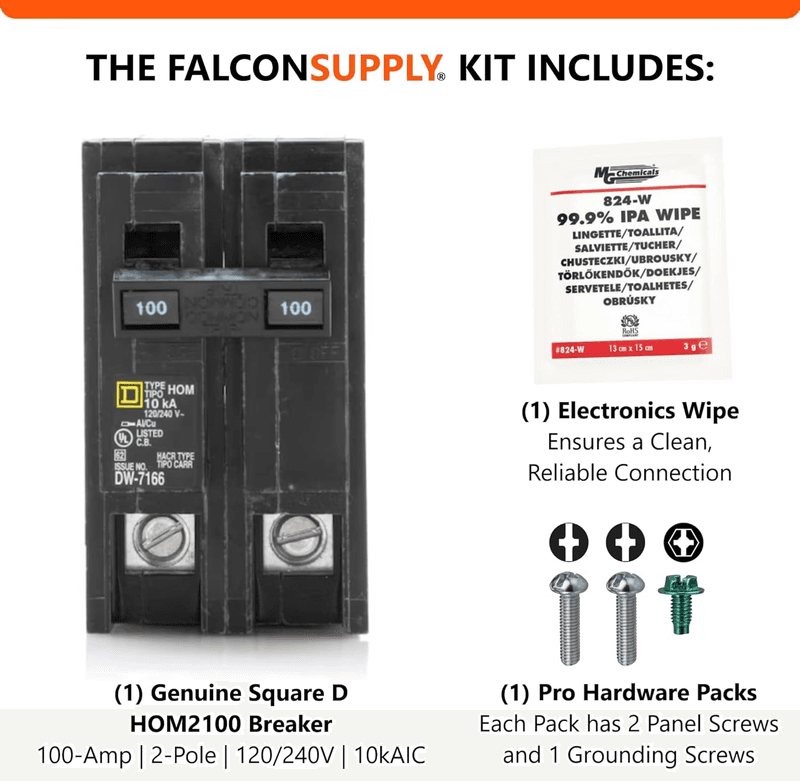

Installation Bundle and Kit Contents:

This FalconSupply installation bundle is for panel upgrades, service changes, and new sub-panel installations. Includes: (1) Square D HOM2100 100A 2-pole breaker, (1) contact cleaning wipe for bus bar preparation, (2) steel panel cover screws for enclosure maintenance, and (1) grounding screw.

System Compatibility and Enclosure Ratings:

This breaker is rated for installation within NEMA 1 (Indoor) and NEMA 3R (Outdoor) Square D Homeline load centers. Functions as a primary service disconnect or high-amperage branch feeder. Replaces or upgrades HOM2100 components in 100A or 200A panels requiring 100-Amp disconnects. Suitable for HVAC condensers, EV chargers, hot tubs, pool sub-panels, and workshop distribution. Compatible with standard Homeline bus bar spacing for secure, vibration-resistant connections. Supports 60/75°C wire temperature ratings.
