(Shipping available at buyers expense message or text 863.393.4062 for further details)

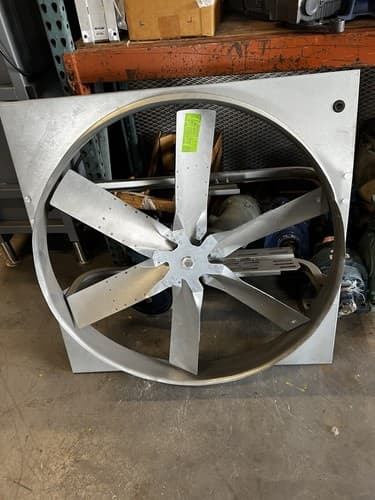

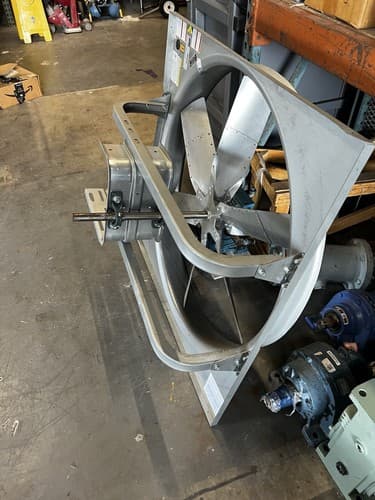

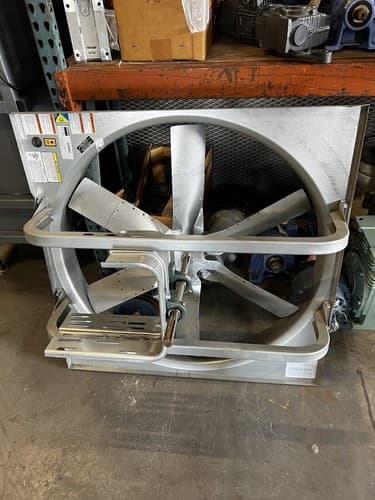

Designed for commercial and industrial applications requiring high volumes of air at low static pressures. Construction includes rigid drive frame rails and one-piece motor/bearing plate. Mount fan in vertical position for exhaust applications or horizontal position for supply applications.

Variable pitch adjustable motor pulley to optimize fan performance. DRIVE MOTOR NOT INCLUDED

Maximum inlet air temperature: 104º F

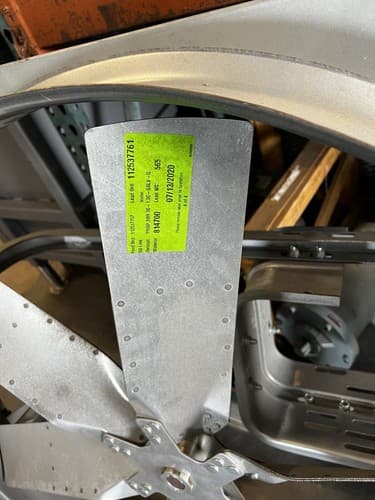

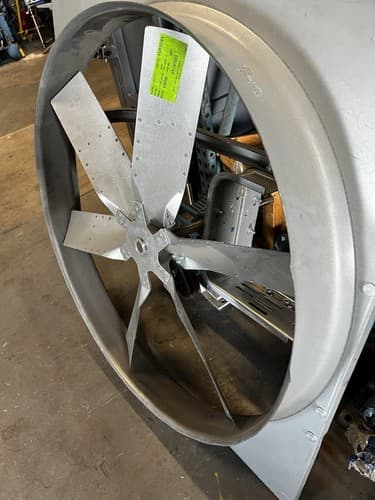

6-Blade reinforced galvanized steel propellers.

Manufacturer description:

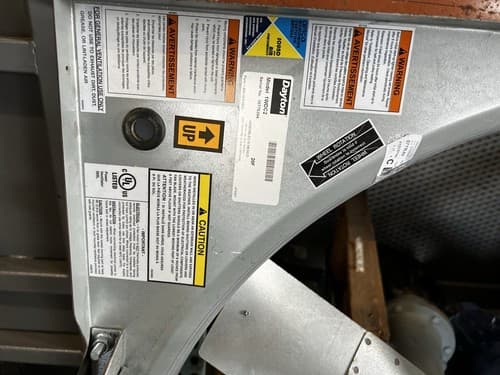

Agency Compliance: AMCA Sound & Air

UL/cUL 705

Bearing Type: Regreaseable Pillow Block

CFM: 8,176 to 17,407 ft3/min

Damper Width x Damper Height: 36 x 36 in

Depth 22 in

Drive Package: Drives By Others

Drive Type: Belt Drive

Fan Description: Exhaust Fan

Frame Material: Galvanized Steel

Height: 40 in

Horsepower: 1/4 to 1 1/2 hp

Impeller Diameter (Nom.) 36 in

Impeller Material: Galvanized Steel

Impeller Type: Propeller

Max Inlet Temp: 104 °F

Model Description: Standard-Duty Belt-Drive Exhaust Fan

Mounting Location: Wall

Number of Blades: 6

Shaft Diameter [?] 1 in

Speed Controllable [?] No

Type Standard Duty Belt-Drive, Less Drive Package

Warranty Length [?] 1 Year

Width [?] 40 in
